BCS-011 ,Block 1,Important Questions with answers with Block wise.
Important Questions with answers
BCA BCS-0011. Computer basic and pc software [sem-1]
BLOCK 1
👉👉👉👉Question 1. Explain the von Neumann's architecture with the help of a diagram.
Answer.
Von Neumann architecture is a design concept for building digital computers that consists of several key components. The architecture was proposed by the mathematician and computer scientist John von Neumann in the late 1940s. It serves as the foundation for most modern computer systems.

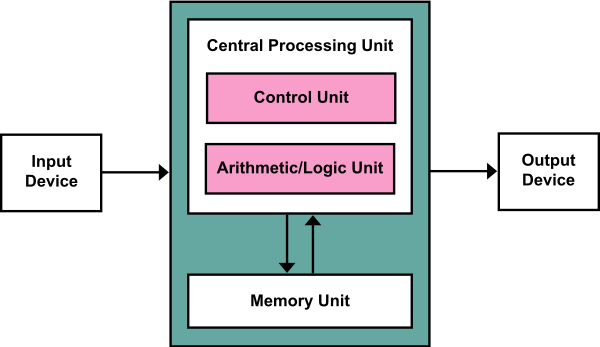

Here is a simplified diagram illustrating the von Neumann architecture:
 |
Let's through each component:
1. **Memory**: This is the storage area where both data and instructions are stored. It can be divided into two parts: the **data memory** for storing data and the **instruction memory** for storing program instructions.
2. **Control Unit**: This component manages and coordinates the activities of other components in the computer. It fetches instructions from memory, decodes them, and generates control signals that direct the operations of the other components.
3. **ALU (Arithmetic Logic Unit)**: The ALU performs arithmetic and logical operations, such as addition, subtraction, multiplication, and comparison. It receives data from the memory or registers and performs the specified operation.
4. **Registers**: These are small, high-speed storage units used to hold data that the CPU needs to perform immediate operations. Common types of registers include the program counter (PC), which keeps track of the memory address of the next instruction, and the accumulator, used for intermediate calculations.
5.**Input**: In von Neumann architecture, input refers to the data or instructions that are received by the computer system from external sources. This can include keyboard input, mouse input, data from storage devices, network communication, or any other means of providing information to the computer. The input is typically processed by the system and used to perform computations or execute specific instructions.
6.**Output**: Output in von Neumann architecture refers to the data or results that are generated by the computer system and sent to external devices or destinations. This can include displaying information on a screen, printing data on a printer, storing data on storage devices, or sending data over a network. The output represents the processed or transformed information resulting from the execution of instructions or computations performed by the system.
The von Neumann architecture allows instructions and data to be stored in the same memory space, which simplifies the design and operation of computers. It enables the CPU to fetch instructions from memory, process them using the ALU, and store the results back in memory or registers.
It's important to note that the diagram represents a simplified version of the von Neumann architecture, and modern computer systems often have additional components and optimizations. Nonetheless, the fundamental principles outlined by von Neumann's architecture remain at the core of most computers today.
👉👉👉👉👉Question 2. Explain the concept of memory hierarchy with the help of a diagram?
Answer:The concept of memory hierarchy refers to the organization of different types of computer memory with varying capacities, speeds, and costs. It aims to optimize the overall performance and cost-effectiveness of a computer system. The memory hierarchy typically consists of multiple levels, with each level offering different trade-offs between speed and capacity.
Here is a simplified diagram illustrating the memory hierarchy:
Let's go through each level of the memory hierarchy:
1.**Registers**: These are small, high-speed memory units located within the CPU. Registers are used to store the most frequently accessed data and instructions. They have the fastest access time but very limited capacity.
2. **Cache**: Cache is a small and fast memory that sits between the CPU and the main memory. It acts as a buffer and stores a subset of frequently accessed data and instructions. The memory hierarchy often includes multiple levels of cache, such as L1, L2, and L3 caches, each with increasing capacity and slightly slower access times compared to the previous level.
3. **Main Memory**: This is the primary memory that holds data and instructions that are actively used by the CPU. Main memory is larger than cache but slower in terms of access time. It is typically implemented using technologies like dynamic random access memory (DRAM) or static random access memory (SRAM).
4. **Secondary Storage**: This level of the memory hierarchy includes non-volatile storage devices like hard disk drives (HDDs), solid-state drives (SSDs), or magnetic tapes. Secondary storage has much larger capacity than main memory but significantly slower access times.
The memory hierarchy operates on the principle of locality, which suggests that programs tend to access a small portion of memory frequently (temporal locality) and adjacent memory locations (spatial locality). By placing frequently accessed data and instructions in faster levels of the memory hierarchy (registers, cache), the CPU can reduce the time spent waiting for data from slower levels (main memory, secondary storage).
The memory hierarchy's organization aims to strike a balance between speed, capacity, and cost. Faster memory levels with smaller capacity are more expensive per unit of storage, while slower memory levels with larger capacity provide more storage at a lower cost.
It's important to note that the actual memory hierarchy in modern computer systems can be more complex, with additional levels of cache, different types of secondary storage, and other optimizations. Nonetheless, the fundamental idea of organizing memory in a hierarchy to improve performance remains consistent.
👉👉👉👉👉Question 3.list the features of generations computers.
Answer.
Computers have evolved through different generations, each marked by significant advancements in technology and capabilities. Here are the key features of each computer generation:
1. First Generation Computers (1940s-1950s):
- Used vacuum tubes for circuitry.
- Large in size and consumed a lot of power.
- Relatively slow processing speed.
- Used punched cards or paper tape for input and output.
- Examples include ENIAC and UNIVAC I.
2. Second Generation Computers (1950s-1960s):
- Used transistors instead of vacuum tubes, leading to smaller size and lower power consumption.
- Faster and more reliable compared to first-generation computers.
- Magnetic core memory replaced earlier memory technologies.
- Assembly language and operating systems were introduced.
- Examples include IBM 1401 and CDC 1604.
3. Third Generation Computers (1960s-1970s):
- Utilized integrated circuits (ICs), which combined multiple transistors on a single chip.
- Smaller, faster, and more reliable than previous generations.
- Operating systems and high-level programming languages (such as COBOL and FORTRAN) gained popularity.
- Introduction of time-sharing and batch processing.
- Examples include IBM System/360 and DEC PDP-10.
4. Fourth Generation Computers (1970s-1980s):
- Adoption of microprocessors, which integrated the entire CPU on a single chip.
- Vastly improved processing speed and efficiency.
- Personal computers (PCs) became available and affordable for individuals.
- Graphical user interfaces (GUIs) and networking capabilities emerged.
- Examples include IBM PC, Apple II, and Commodore 64.
5. Fifth Generation Computers (1980s-Present):
- Advancements in semiconductor technology, including Very Large Scale Integration (VLSI).
- Introduction of parallel processing and supercomputers.
- Artificial Intelligence (AI) and expert systems development.
- Increased focus on natural language processing and human-computer interaction.
- Examples include Cray-2, IBM Watson, and modern smartphones.
It's worth noting that these generational classifications provide a broad overview of computer evolution and technological advancements. The boundaries between generations are not precisely defined, and advancements often overlap. Additionally, subsequent generations build upon the innovations of previous ones, resulting in increasingly powerful and versatile computing systems.
👉👉👉👉 Question 4.What is the port?
Answer
In the context of computer networking, a port is a communication endpoint or a logical construct that allows multiple applications or processes to share a single network interface. It is an essential part of the transport layer protocols, such as the Transmission Control Protocol (TCP) and the User Datagram Protocol (UDP), which enable data transmission between devices on a network.
A port is identified by a numeric value called a port number, which ranges from 0 to 65,535. Port numbers are divided into three ranges:
1. Well-known ports: Port numbers ranging from 0 to 1023 are reserved for well-known services or protocols. For example, port 80 is commonly used for HTTP (Hypertext Transfer Protocol) traffic, port 443 for HTTPS (HTTP Secure) traffic, and port 25 for SMTP (Simple Mail Transfer Protocol) traffic.
2. Registered ports: Port numbers ranging from 1024 to 49,151 are allocated by the Internet Assigned Numbers Authority (IANA) to specific services or applications. They are used by various applications, such as FTP (File Transfer Protocol) using port 21, SSH (Secure Shell) using port 22, and DNS (Domain Name System) using port 53.
3. Dynamic or private ports: Port numbers ranging from 49,152 to 65,535 are available for dynamic or private use. These ports are used by client applications for temporary connections and are assigned dynamically by the operating system.
When data is sent over a network, it is encapsulated in packets, and each packet contains both the IP address (identifying the device) and the port number (identifying the specific application or process) at the destination device. This allows the receiving device to correctly route the incoming data to the appropriate application or process running on that device.
In summary, a port is a numeric identifier that helps in directing network traffic to the correct application or process on a device within a network. It allows multiple applications to share a network interface by using different port numbers to differentiate between them.
👉👉👉👉 Question 5.What is main memory?
Answer.
Main memory, also known as primary memory or random-access memory (RAM), is a type of computer memory that is used to store data and instructions that are actively being used by the CPU (central processing unit) of a computer. It is the primary storage location where the computer's operating system, software applications, and data reside during execution.
Main memory is volatile, meaning its contents are lost when the computer is powered off or restarted. This is in contrast to secondary storage devices like hard drives or solid-state drives, which retain data even when the power is turned off.
The main purpose of main memory is to provide the CPU with fast access to data and instructions that are required for the execution of programs. When a program is launched, its instructions and the data it operates on are loaded from secondary storage into main memory. The CPU can then retrieve and manipulate this information quickly, significantly improving the overall performance of the computer system.
Main memory is typically made up of integrated circuits called memory chips. These chips are organized into a hierarchy of storage cells that can be accessed individually. Each cell stores a fixed amount of data, usually represented as binary digits or "bits." The size of main memory is typically measured in gigabytes (GB) or terabytes (TB) and can vary depending on the computer system.
In summary, main memory is a fast and temporary storage area in a computer where data and instructions are stored for immediate access by the CPU. It plays a crucial role in the efficient execution of programs and the overall performance of a computer system.
👉👉👉👉 Question 6.Parallel port and serial port?
Answer.
A parallel port and a serial port are two different types of interfaces used to connect peripheral devices to a computer. Here's a brief explanation of each:
1. Parallel Port:
A parallel port is an older type of interface that was commonly found on personal computers in the past. It is used to transfer multiple bits of data simultaneously, hence the term "parallel." Parallel ports typically have a large number of pins (often 25 pins) and allow for bidirectional data transfer.
The primary use of parallel ports was to connect printers, scanners, and other external devices that required high-speed data transfer. They provided a faster data transfer rate compared to serial ports, making them suitable for tasks that involved sending large amounts of data quickly. However, with the advancement of technology, parallel ports have become less common in modern computers as they have been largely replaced by USB (Universal Serial Bus) ports.
2. Serial Port:
A serial port is a type of interface used to transfer data one bit at a time, sequentially, hence the term "serial." Serial ports typically have fewer pins (commonly 9 pins) compared to parallel ports. They are commonly used for connecting devices that require a slower data transfer rate, such as modems, serial mice, and older external storage devices.
Serial ports are capable of full-duplex communication, meaning they can transmit and receive data simultaneously. They are generally slower than parallel ports but are still used in some specific applications where lower data rates and longer cable distances are acceptable.
It's worth noting that both parallel ports and serial ports have become less common in modern computer systems. The widespread adoption of USB ports has provided a more versatile and faster alternative for connecting peripheral devices to computers.
👉👉👉👉 Question 7.Convert the following decimal number to binary number and hexadecimal number.
To convert a decimal number with a fractional part to binary and hexadecimal, we can use the following steps:
1. Binary Conversion:
To convert the fractional part of a decimal number to binary, we repeatedly multiply the fractional part by 2 and keep track of the integer part. The binary number is formed by concatenating the integer parts obtained at each step.
For the decimal number 0.215:
```
0.215 * 2 = 0.43 Integer part = 0
0.43 * 2 = 0.86 Integer part = 0
0.86 * 2 = 1.72 Integer part = 1
0.72 * 2 = 1.44 Integer part = 1
0.44 * 2 = 0.88 Integer part = 0
0.88 * 2 = 1.76 Integer part = 1
0.76 * 2 = 1.52 Integer part = 1
0.52 * 2 = 1.04 Integer part = 1
0.04 * 2 = 0.08 Integer part = 0
0.08 * 2 = 0.16 Integer part = 0
0.16 * 2 = 0.32 Integer part = 0
0.32 * 2 = 0.64 Integer part = 0
0.64 * 2 = 1.28 Integer part = 1
0.28 * 2 = 0.56 Integer part = 0
0.56 * 2 = 1.12 Integer part = 1
0.12 * 2 = 0.24 Integer part = 0
0.24 * 2 = 0.48 Integer part = 0
0.48 * 2 = 0.96 Integer part = 0
0.96 * 2 = 1.92 Integer part = 1
0.92 * 2 = 1.84 Integer part = 1
0.84 * 2 = 1.68 Integer part = 1
0.68 * 2 = 1.36 Integer part = 1
0.36 * 2 = 0.72 Integer part = 0
0.72 * 2 = 1.44 Integer part = 1
0.44 * 2 = 0.88 Integer part = 0
0.88 * 2 = 1.76 Integer part = 1
```
The binary representation of 0.215 is the concatenation of the integer parts obtained at each step: 0011010001110000111011010111.
2. Hexadecimal Conversion:
To convert the binary representation to hexadecimal, we group the binary digits into groups of 4 (starting from the rightmost digit) and replace each group with its corresponding hexadecimal digit.
For the binary number 0011010001110000111011010111:
```
0011 0100 0111 0000 1110 1101 0111
3 4 7 0 E D 7
```
The hexadecimal representation of 0.215 is 0.3470ED7.
Therefore, the conversion results are as follows57mbers to binary and hexadecimal numbers, we can use the following steps:
1. Binary Conversion:
To convert a decimal number to binary, we repeatedly divide the decimal number by 2 and keep track of the remainders until the quotient becomes 0. The binary number is formed by arranging the remainders in reverse order.
For the decimal number 57:
```
57 ÷ 2 = 28 remainder 1
28 ÷ 2 = 14 remainder 0
14 ÷ 2 = 7 remainder 0
7 ÷ 2 = 3 remainder 1
3 ÷ 2 = 1 remainder 1
1 ÷ 2 = 0 remainder 1
```
Reading the remainders from bottom to top, we get the binary representation of 57 as 111001.
2. Hexadecimal Conversion:
To convert a decimal number to hexadecimal, we repeatedly divide the decimal number by 16 and keep track of the remainders until the quotient becomes 0. The hexadecimal number is formed by replacing remainders greater than 9 with corresponding letters (A for 10, B for 11, etc.) and arranging the remainders in reverse order.
For the decimal number 57:
```
57 ÷ 16 = 3 remainder 9 (9 is represented as 9 in hexadecimal)
3 ÷ 16 = 0 remainder 3 (3 is represented as 3 in hexadecimal)
```
Reading the remainders from bottom to top, we get the hexadecimal representation of 57 as 39.
Therefore, the conversion results are as follows:
- Decimal 57 in binary is 111001.
- Decimal 57 in hexadecimal 39
1. Binary Conversion:
For the decimal number 78:
```
78 ÷ 2 = 39 remainder 0
39 ÷ 2 = 19 remainder 1
19 ÷ 2 = 9 remainder 1
9 ÷ 2 = 4 remainder 1
4 ÷ 2 = 2 remainder 0
2 ÷ 2 = 1 remainder 0
1 ÷ 2 = 0 remainder 1
```
Reading the remainders from bottom to top, we get the binary representation of 78 as 1001110.
2. Hexadecimal Conversion:
For the decimal number 78:
```
78 ÷ 16 = 4 remainder 14 (14 is represented as E in hexadecimal)
4 ÷ 16 = 0 remainder 4 (4 is represented as 4 in hexadecimal)
```
Reading the remainders from bottom to top, we get the hexadecimal representation of 78 as 4E.
Therefore, the conversion results are as follows:
- Decimal 78 in binary is 1001110.
- Decimal 78 in hexadecimal is 4E.
To convert a decimal number with a fractional part to binary and hexadecimal, we can use the following steps:
1. Binary Conversion:
To convert the fractional part of a decimal number to binary, we repeatedly multiply the fractional part by 2 and keep track of the integer part. The binary number is formed by concatenating the integer parts obtained at each step.
For the decimal number 0.215:
```
0.215 * 2 = 0.43 Integer part = 0
0.43 * 2 = 0.86 Integer part = 0
0.86 * 2 = 1.72 Integer part = 1
0.72 * 2 = 1.44 Integer part = 1
0.44 * 2 = 0.88 Integer part = 0
0.88 * 2 = 1.76 Integer part = 1
0.76 * 2 = 1.52 Integer part = 1
0.52 * 2 = 1.04 Integer part = 1
0.04 * 2 = 0.08 Integer part = 0
0.08 * 2 = 0.16 Integer part = 0
0.16 * 2 = 0.32 Integer part = 0
0.32 * 2 = 0.64 Integer part = 0
0.64 * 2 = 1.28 Integer part = 1
0.28 * 2 = 0.56 Integer part = 0
0.56 * 2 = 1.12 Integer part = 1
0.12 * 2 = 0.24 Integer part = 0
0.24 * 2 = 0.48 Integer part = 0
0.48 * 2 = 0.96 Integer part = 0
0.96 * 2 = 1.92 Integer part = 1
0.92 * 2 = 1.84 Integer part = 1
0.84 * 2 = 1.68 Integer part = 1
0.68 * 2 = 1.36 Integer part = 1
0.36 * 2 = 0.72 Integer part = 0
0.72 * 2 = 1.44 Integer part = 1
0.44 * 2 = 0.88 Integer part = 0
0.88 * 2 = 1.76 Integer part = 1
```
The binary representation of 0.215 is the concatenation of the integer parts obtained at each step: 0011010001110000111011010111.
2. Hexadecimal Conversion:
To convert the binary representation to hexadecimal, we group the binary digits into groups of 4 (starting from the rightmost digit) and replace each group with its corresponding hexadecimal digit.
For the binary number 0011010001110000111011010111:
```
0011 0100 0111 0000 1110 1101 0111
3 4 7 0 E D 7
```
The hexadecimal representation of 0.215 is 0.3470ED7
To convert a binary number to decimal and hexadecimal, we can use the following steps:
1. Decimal Conversion:
To convert a binary number to decimal, we multiply each binary digit by 2 raised to the power of its position (starting from the rightmost digit) and sum the results.
For the binary number (10110101)2:
```
(1 * 2^7) + (0 * 2^6) + (1 * 2^5) + (1 * 2^4) + (0 * 2^3) + (1 * 2^2) + (0 * 2^1) + (1 * 2^0)
= 128 + 0 + 32 + 16 + 0 + 4 + 0 + 1
= 181
```
The decimal representation of (10110101)2 is 181.
2. Hexadecimal Conversion:
To convert a binary number to hexadecimal, we group the binary digits into groups of 4 (starting from the leftmost digit) and replace each group with its corresponding hexadecimal digit.
For the binary number (10110101)2:
```
(1011) (0101)
B 5
```
The hexadecimal representation of (10110101)_2 is B5.
To convert a binary number to decimal and hexadecimal, we can use the following steps:
1. Decimal Conversion:
To convert a binary number to decimal, we multiply each binary digit by 2 raised to the power of its position (starting from the rightmost digit) and sum the results.
For the binary number (00101110)2:
```
(0 * 2^7) + (0 * 2^6) + (1 * 2^5) + (0 * 2^4) + (1 * 2^3) + (1 * 2^2) + (1 * 2^1) + (0 * 2^0)
= 0 + 0 + 32 + 0 + 8 + 4 + 2 + 0
= 46
```
The decimal representation of (00101110)_2 is 46.
2. Hexadecimal Conversion:
To convert a binary number to hexadecimal, we group the binary digits into groups of 4 (starting from the leftmost digit) and replace each group with its corresponding hexadecimal digit.
For the binary number (00101110)2:
```
(0010) (1110)
2 E
```
The hexadecimal representation of (00101110)2 is 2E.
👉👉👉👉 Question 8.What is an integrated circuit?Is microprocessor an integrated circuit?
Answer
An integrated circuit (IC) is a small electronic device that contains a large number of electronic components such as transistors, diodes, resistors, and capacitors. These components are fabricated onto a single semiconductor material, typically silicon, and interconnected to perform a specific function or a set of functions.
ICs revolutionized the field of electronics by enabling miniaturization, increased reliability, and improved performance compared to the use of discrete electronic components. They are widely used in various electronic devices and systems, ranging from simple everyday items like calculators and smartphones to complex systems like computers and satellites.
A microprocessor is indeed an example of an integrated circuit. It is a complex integrated circuit that contains all the functions of a central processing unit (CPU) within a single chip. A microprocessor consists of an arithmetic logic unit (ALU), control unit, registers, and other components necessary for executing instructions and performing calculations. It serves as the "brain" of a computer or other electronic devices, handling tasks related to data processing and control.
Microprocessors have played a pivotal role in the advancement of computing technology and have become an integral part of various devices, from personal computers and smartphones to embedded systems and industrial machinery.
